GTI® Geotextiles and Geo bags

product detail banner
Non-Woven Geotextile

GTI® Woven Geotextile

Woven Geotextiles are made from weaving high tenacity PP & polyester and multifilament yarn. Woven geotextile has high dimensional stability which enables to handle very high loads and reduced differential settlement when used for ground improvement application.

The functions are separation, filtration, drainage and initial reinforcement. Geotextiles are permeable fabrics which, when used in association with soil, have the ability to separate, filter, reinforce, protect, or drain.

Special Features

  • Easy and Fast Installation

  • High tensile strength and low elongation

  • Superior capacity for filtration and load distribution

  • Excellent Long Term Design Strength

  • Cost effective

Applications

  • Base separation /Stabilization

  • Ballast / subgrade reinforcement

  • Ground Improvement

  • Land Reclaimation

  • Geotextile bags, Geotextile tubes

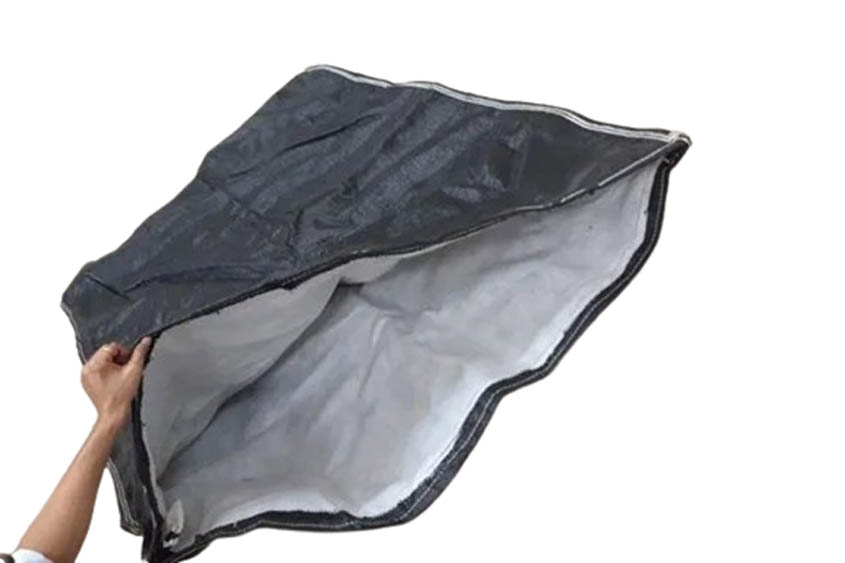

Woven Geotextile Bags and Geotextile Tubes

Geotextile bags are relatively smaller sized (1.m X0.7m) bags fabricated from appropriate geotextiles and filled with sand or any suitable soil.

Geotextile tubes are large tubelike structures (length – 5/ 10 /15/20/30m and tube dia 2.29 m /3m) fabricated from high tenacity yarn that are woven into stable network such that yarn retain their relative position.

We can customize size of geotextile bag and geotextile tubes as per client requirement.

Special Features

  • Highly flexible

  • Fast and Easy to installation

  • Durable

  • Cost effective

Applications

  • Bridge Scour Protection

  • River Bank /Canal Protection

  • Flood Protection

  • Land Reclamation

  • Coastal Erosion Protection

Reference codes

  • MORTH 700: Geosynthetics

  • IRC SP:59 “Guidelines for Use of Geotextiles in Road Pavements and Associated Works

  • IRC:89-2019. GUIDELINES FOR DESIGN AND CONSTRUCTION. OF RIVER TRAINING AND CONTROL WORKS. FOR ROAD BRIDGES.

Non-Woven Geotextile

GTI® Non-Woven Geotextile

GTI® Nonwoven Geotextiles are made from high quality pp fibres to form stable network of staple fibres. GTI® Nonwoven Geotextiles are needle punched to form a strong fabric that relates its dimensional stability, specially engineered UV Stabilized and is more resistant to puncture adding years to the life of any road railway land fill, horticulture & civil environmental application.

Geotextiles are permeable nonwoven fabrics used to separate, filter, reinforce, protect, or drain.

GTI® Nonwoven Geotextiles allow filtration/separation of granular layers in roads and rail applications, used to protect membranes in landfill applications, used in coastal defence applications and used in Landscaping to protect surfaces and structures from weeds and root growth.

Special Features

  • Fast and Easy to installation

  • Cost effective

  • Efficient filtration

Applications

  • Base separation /Stabilization

  • Ballast / subgrade reinforcement

  • Ground Improvement

  • Bridge Scour Protection

  • Reinforced Concrete wall

  • Reinforced Gabion Wall (GTI GX wall)

  • Reinforced RCC Panel Wall (GTI PX wall)

  • Gabion Gravity Wall

  • River Bank /Canal Protection

  • Flood Protection

  • Dikes /Groins

  • Land Reclamation

  • Coastal Erosion Protection

  • Haul roads / Internal Roads

Reference codes

  • MORTH 700: Geosynthetics

  • IRC SP:59 “Guidelines for Use of Geotextiles in Road Pavements and Associated Works

  • IRC:89-2019. GUIDELINES FOR DESIGN AND CONSTRUCTION. OF RIVER TRAINING AND CONTROL WORKS. FOR ROAD BRIDGES.

Nonwoven Geotextile Bags

Nonwoven Geotextile bags are relatively smaller sized (1.m X0.7m) bags fabricated from appropriate geotextiles and filled with sand or any suitable soil.
We can customize size of geotextile bag as per client requirement.

Special Features

  • Fast and Easy to installation

  • Cost effective

  • Durable

  • Highly flexible

Reference codes

  • MORTH 700: Geosynthetics

  • IRC SP:59 “Guidelines for Use of Geotextiles in Road Pavements and Associated Works
